Edelstahl Multitouchscreen ThinClient HP t620 kompatibel |
Touchscreen Bediengerät zur Montage am Tragarm |
Rundum geschlossenes Gehäuse mit Core 2 Technologie 2x WLAN und IP65 verschlossenen USB Anschluß |

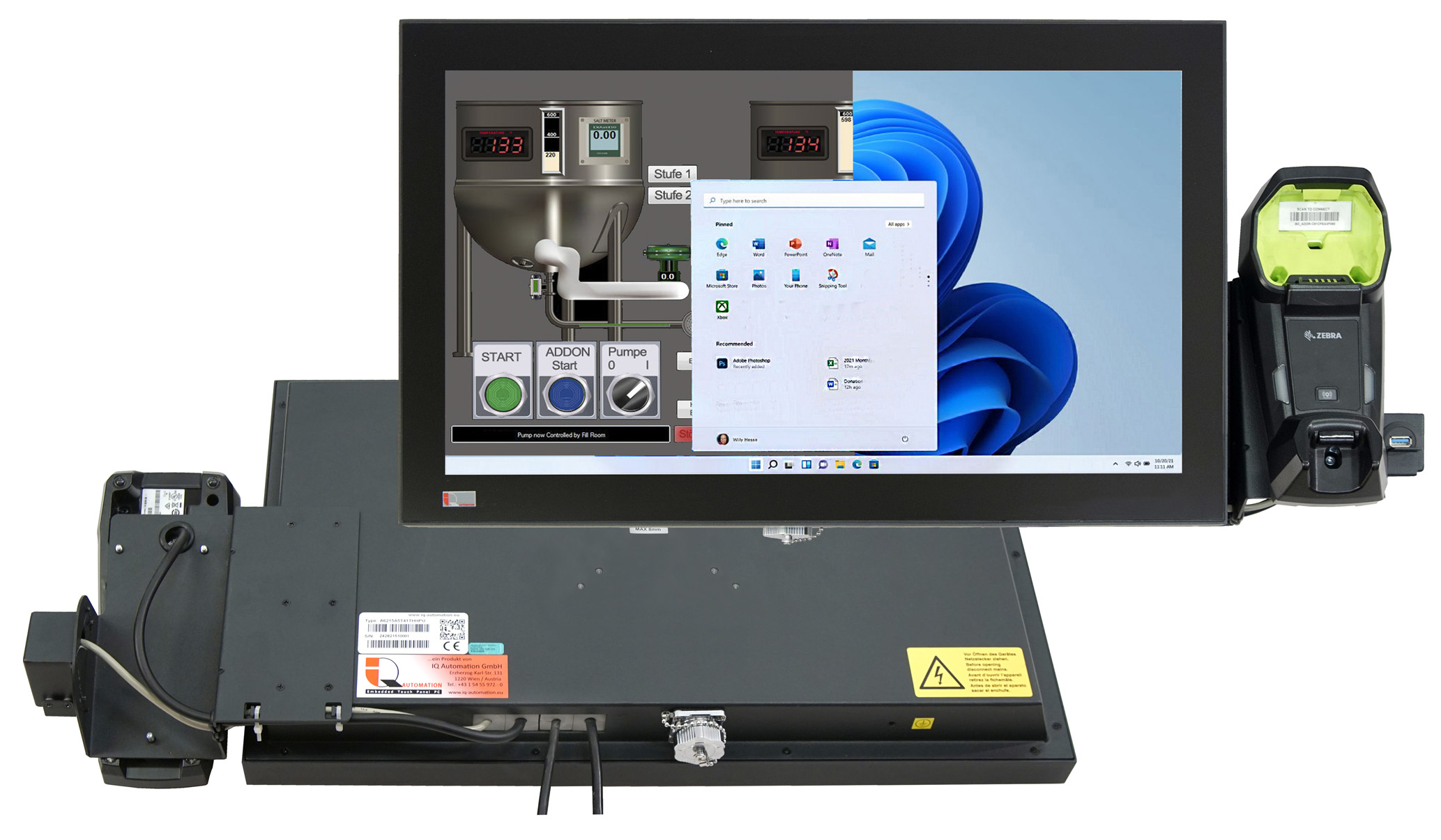

21.5" Panel PC mit Erweiterungssteckplätzen und rundum IP65 |
||
---|---|---|---|---|---|
Bestellbezeichnung: | A6215WHT6T10PU | AF215SBT0KKHU | A6215SBT60KK0PU | A9215SBTS0G20HU | |
Leuchtdichte cd/m² |
350 | 350 | 350 | 350 | |
Kontrast | 700:1 | 700:1 | 700:1 | 700:1 | |
Auflösung (Bildpunkte) | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
Farben | 16,7 Millionen | 16.7 Million | 16.7 Million | 16.7 Million | |
Details einblenden | |||||
Backlight Life Time |
LED 50.000h | LED 50.000h | LED 50.000h | LED 50.000h | |
Blickwinkel H/V | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | |
CPU | AMD GX-217GA Dual-Core APU | Intel® CELERON™ J1900 1.6GHz |
Intel® ATOM™ D2550 2x1.86GHz |
Intel® Core™ i7-6600U 2.6 ~ 3.4GHz |
|
Chip Set | Intel® HD Graphic | Intel® NM10 Express chipset |
Intel® HD Graphic | ||
Grafik | AMD Radeon HD 8280E | Intel® Graphics Media Accelerator 3650 |
|||
Audio | Interner Aktivlautsprecher, 1/8-Zoll-Minianschluss für Kopfhörer, 24 Bit Vollstereo, bis 192 kHz Abtastrate im Ausgang; 1/8-Zoll-Minianschluss für Mikrofon; 24 Bit Stereo; bis zu 192 kHz Abtastrate im Eingang, Audio-Line-In- und -Line-Out-Anschlüsse auf der Rückseite. (optional verfügbar) | HD Codec 2W Verstärker | RT ALC662-VC HD Codec 2W Verstärker | RT ALC662-VC HD Codec 2W Verstärker | |
Speicher | max. 16 GB DDR3L-1600 SDRAM 1600 MHz DDR3L SDRAM | DDR3L SO-DIMM 4GB max. 8GB | DDR3 SO-DIMM 2GB max. 4GB | DDR3 SO-DIMM 2GB max. 8GB | |
SSD/HDD | 8 GB bis zu 64 GB MLC Flash-Speicher | SSD 64GB | SSD 64GB | SSD 64GB oder 250GB HDD | |
Erweiterung | 1x miniPCIe Sockel | 2x miniPCIe Sockel | 2x miniPCIe Sockel | ||
Ethernet | 10/100/1000 GbE | 1x GbE RTL8111C 1x Intel I210-AT WOL/RPL/PXE |
2x GbE RTL8111C WOL/RPL/PXE | 2x GbE RTL8111C WOL/RPL/PXE | |
USB | 0x (2x)* USB 3.0, * USB 3.0 *USB 2.0 |
5x USB 2.0 1x USB 3.0 |
8x USB 2.0 | 6x USB 3.0 + 6x USB 2.0 | |
COM Seriell | - | 6x (1x RS232/422/485) | 2x (1x RS232/422/485) | 2x (1x RS232/422/485) | |
Videoausgang | 2x DP (einmal benutzt) | 1x VGA 1x HDMI | 1x VGA 1x HDMI | 1x VGA 1x HDMI 1x DP | |
Sicherheit | - | Watchdog 1~255 Schritten |
Watchdog 1~255 Schritten |
Watchdog 1~255 Schritten |
|
Stromversorgung | Integrierter Netzteil 110 ~ 260VAC 50/60Hz | 12VDC / 50W externes Netzteil optional 10VDC ~ 32VDC |
12VDC / 40W externes Netzteil optional 10VDC ~ 32VDC |
12VDC / 50W externes Netzteil optional 10VDC ~ 32VDC |
|
Temperaturbereich | 0° ~ 45°C | 0° ~ 50° optional erweitert |
0° ~ 50° optional erweitert |
0° ~ 50° optional erweitert |
|
Schutzklasse | Komplett IP65 | Front IP65 / IP20 | Front IP65 | Front IP65 | |
Schutzglas oder Touchscreen | PCT Glas -Multitouch | 5Draht resistiver Touch od. 3M Capacitive GlasTouch |
PCT Glas -Multitouch | PCT Glas -Multitouch | |
Mögliches Zubehör bei allen Geräten | Edelstahl EN 1.4404 | RFID - | Funktionstasten - | Digital Ein- Ausgang | |
Besonderheit | Protokolle: |
kompakter Panel PC zur Montage an einen Tragarm | Geschlossenes Gehäuse - bevorzugt wenn im Tragarm die Kabel geführt werden | Höchste CPU Leistung mit Kartenrahmen zur Erweiterung |
Rundum geschlossenes Gehäuse mit Core 2 Technologie - IP65 - PCIe Steckplatz |
|
||||
---|---|---|---|---|---|
Bestellbezeichnung: | A6215INT8GKP1 | ||||
Leuchtdichte cd/m² |
350 | ||||
Kontrast | 700:1 | ||||
Auflösung (Bildpunkte) | 1920 x 1080 | ||||
Farben | 16.7 Million | ||||
Details einblenden | |||||
Backlight Life Time |
LED 50.000h | ||||
Blickwinkel H/V | 170° / 170° | ||||
CPU | Intel® Celeron™ J1900 2x max. 2.42GHz |
||||
Chip Set | Intel® Baytrail | ||||
Grafik | Intel® HD Graphics | ||||
Audio | RT ALC662-VC HD Codec 2W Verstärker | ||||
Speicher | DDR3 SO-DIMM 4GB max. 8GB | ||||
SSD/HDD | SSD 64GB | ||||
Erweiterung | 2x miniPCIe Sockel | ||||
Ethernet | 2x LAN (RJ-45 on rear, 1x Intel® I210-AT, 1x Realtek RTL8111G) | ||||
USB | 1x USB 3.0 5x USB 2.0 | ||||
COM Seriell | 2x (1x RS232/422/485) 4x RS232 |
||||
Videoausgang | 1x VGA 1x HDMI | ||||
Sicherheit | Watchdog 1~255 Schritten |
||||
Stromversorgung | 12VDC / 40W mit externem Netzteil |
||||
Temperaturbereich | 0° ~ 50° optional erweitert |
||||
Schutzklasse | komplett IP65 | ||||
Schutzglas oder Touchscreen | PCT Glas -Multitouch | ||||
Mögliches Zubehör bei allen Geräten | Digital Ein- Ausgang kurze PCIe Erweiterung |
||||
Besonderheit | Geschlossenes Gehäuse - bevorzugt wenn im Tragarm die Kabel geführt werden |
